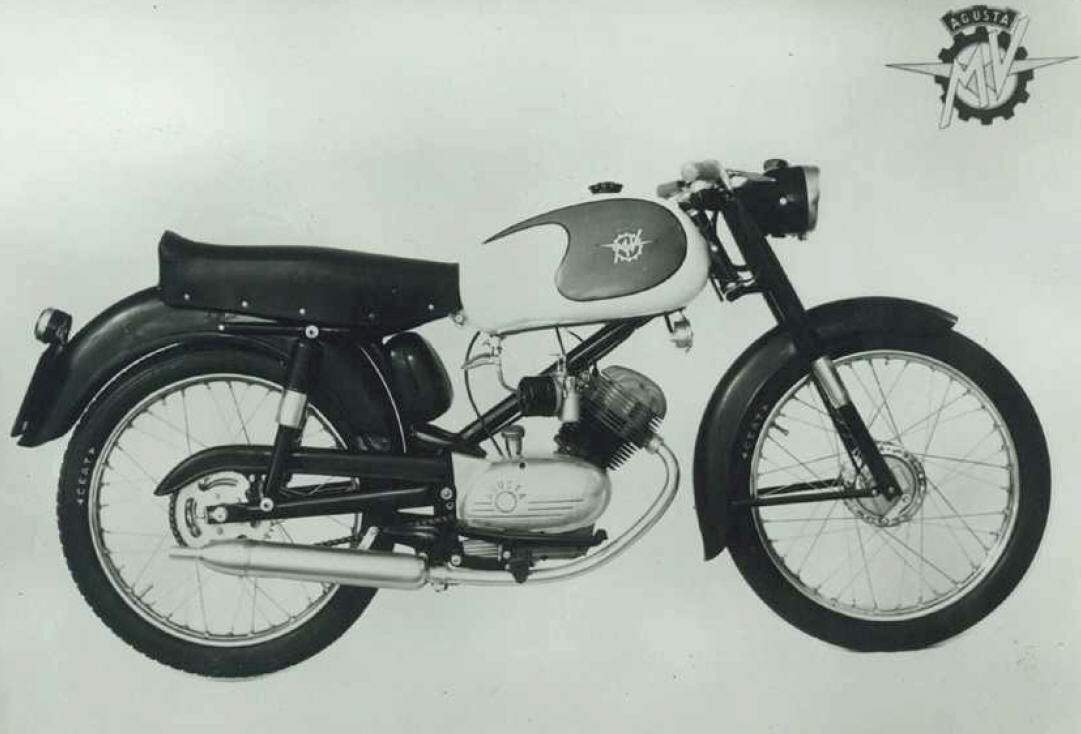

MV Agusta 83 Ottantatrè Turismo SPECIFICATIONS, PRICE & IMAGES

Bike Features

Make Model:
MV Agusta 83 Ottantatrè Turismo

Year:
1958 – 60

Units Produced:
approx. 7630

Engine:
Four stroke, single cylinder, pushrod, 2 valve

Capacity:
83.2 cc / 5.0 cu-in

Bore x Stroke:
 46.5 x 49 mm

Cooling System:
Air cooled

Compression Ratio:
7.0:1

Induction:
15 mm Carburettor

Lubrication:
Wet sump

Ignition  :
Flywheel magneto

Starting:
Kick

Max Power:

2.7 kW / 3.7
hp @ 6000 rpm

Clutch:
Wet multiple plate clutch

Transmission:
3 speed

Final Drive:
Chain

Frame:
Tubular steel single beam

Front Suspension:
Telescopic hydraulic fork

Rear Suspension:
Swingarm with hydraulic shocks

Front Brakes:
118mm Drum

Rear Brakes:
118mm Drum

Front Tyre:
2.50-19

Rear Tyre:
3.00-19

Dimensions:

Length  1905 mm / 75.0 in

Width    620 mm / 24.4 in

Wheelbase:
1245 mm / 49.0 in

Weight :
83 Kg / 183 lbs

Fuel Capacity :

12 Litres / 3.1 US gal
