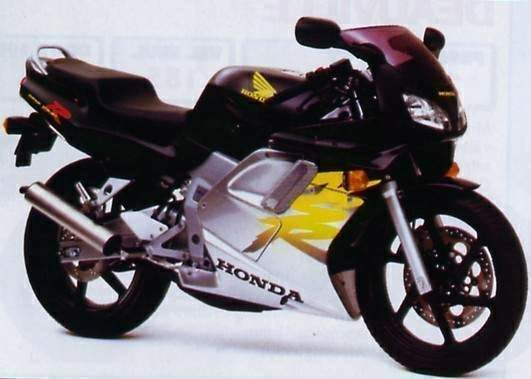

Honda NSR 125R SPECIFICATIONS, PRICE & IMAGES

Bike Features

Make Model:
Honda NSR 125R-R

Year:
1999

Engine:
Two stroke, single cylinder, Reed valve
induction

Capacity:
124.8 cc / 7.6 cu-in

Bore x Stroke:
54 x 54.5 mm

Cooling System:
Liquid cooled

Compression Ratio:
7.0:1

Induction:
28mm Dell’Orto

Ignition  :
Capacitor discharge electronic ignition

Starting:
Electric &
Kick

Max Power :
12 hp / 9 kW @ 9500 rpm

Max Torque:
15 Nm / 11 kb-ft @ 8000 rpm

Clutch:
Multi-disc oil bath

Transmission  :
6 Speed

Final Drive:
Chain

Front Suspension:
35mm Showa Telescopic forks

Rear Suspension:
Pro-link rising rate adjustable preload

Front Brakes:
Single 316mm disc 2 piston caliper

Rear Brakes:
Single 220mm disc 2 piston caliper

Front Tyre:
100/80-17

Rear Tyre:
130/70-17

Dry Weight :
127 kg / 280 lbs

Fuel Capacity:
13 Litres / 3.8 US gal

Road Test:

Motosprint 1993
