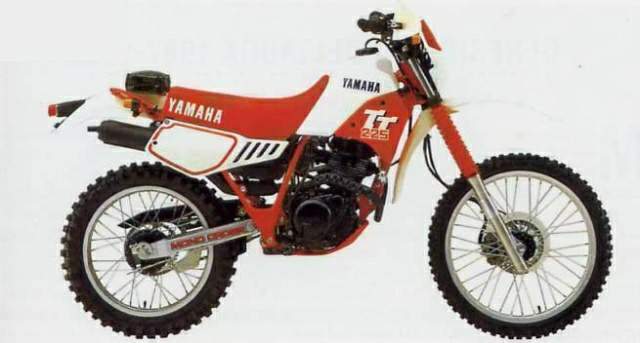

Yamaha TT 225 SPECIFICATIONS, PRICE & IMAGES

Bike Features

Make Model
:
Yamaha TT 225

Year
:
1986 – 88

Engine
:
Four stroke, single cylinder, SOHC, 2 valve

Capacity
:
223 cc / 13.6 cu-in

Bore x Stroke:
70 x 58 mm

Cooling System:
Air cooled

Compression Ratio:
9.5:

Induction:
26mm Teikei carburetor

Ignition :
CDI

Starting:
Kick

Max Power :

Max Torque:

Transmission :
6 Speed

Final Drive:
Chain

Front Suspension:
Telescopic forks

Front Wheel Travel:
239 mm / 9.4 in

Rear Suspension:
Link Type single shock

Rear Wheel Travel:
221 mm / 8.7 in

Front Brakes:
Single 229mm disc

Rear Brakes:
Drum

Front Tyre:
80/100-21

Rear Tyre:
100/100-18

Wheelbase :
1374 mm / 54.1 in

Seat Height:
885 mm / 24.8 in

Ground Clearance:
305 mm / 12.0 in

Dry Weight :
100.7 kg / 222 lbs

Fuel Capacity :
8 Litres / 2.1 US gal
